CDevice Class Reference

#include <base classses.h>

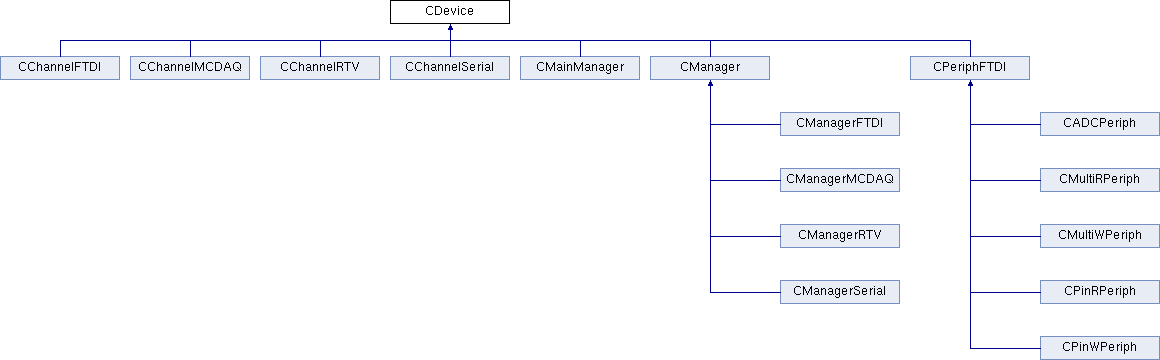

Inheritance diagram for CDevice:

Public Member Functions
	CDevice (const TCHAR szName[])
virtual void	ProcessData (const void *pHead, DWORD dwSize, __int64 llId)=0
virtual void	Result (void *pHead, bool bPass)=0
virtual DWORD	GetInfo (void *pHead, DWORD dwSize)=0

Public Attributes
const std::tstring	m_csName

Protected Attributes
CComm *	m_pcComm
CLogBuffer *	m_pcLogBuffer
CMemPool *	m_pcMemPool
bool	m_bError

Detailed Description

This defines a general device. Each channel type object is inherited from this device. A device can recieve notifications from a user through a comm through the ProcessData() function. When a device writes to a user through a comm using the SendData() function, the comm notifies the user of success or failure using the Result() function.

In additon, each type of device has a unique name (defined at compile time) that identifies it.

Definition at line 77 of file base classses.h.

Constructor & Destructor Documentation

CDevice()

CDevice::CDevice ( const TCHAR  szName[] )

inline

szName is the device's unique name.

Definition at line 81 of file base classses.h.

Member Function Documentation

GetInfo()

virtual DWORD CDevice::GetInfo ( void *  pHead, DWORD  dwSize  )

pure virtual

This function copies chennel specific info into pHead which could then be sent to the user in response to a query request. If phead is NULL, the function returns the required size of pHead. If non NULL, dwSize if the sise of pHead and the function returns the total size of the data copied into pHead. This funcion followes the rules where every sub-struct is proceeded by an SBase. Typically, it returns an SBaseOut sturct which holds the name of the device followed by channels specific structs.

Implemented in CPinRPeriph, CPinWPeriph, CMultiRPeriph, CMultiWPeriph, CADCPeriph, CManager, CPeriphFTDI, CMainManager, CChannelFTDI, CChannelMCDAQ, CChannelSerial, CChannelRTV, CManagerFTDI, CManagerMCDAQ, CManagerRTV, and CManagerSerial.

ProcessData()

virtual void CDevice::ProcessData ( const void *  pHead, DWORD  dwSize, __int64  llId  )

pure virtual

Comm calls this function when a user sent data to the device.

Implemented in CPinRPeriph, CPinWPeriph, CMultiRPeriph, CMultiWPeriph, CADCPeriph, CManager, CPeriphFTDI, CMainManager, CChannelFTDI, CChannelMCDAQ, CChannelSerial, CChannelRTV, CManagerFTDI, CManagerMCDAQ, CManagerRTV, and CManagerSerial.

Result()

virtual void CDevice::Result ( void *  pHead, bool  bPass  )

pure virtual

Comm calls this function when it finished writing data to user sent by this device. phead is the pHead parameter in the SData struct that was sent with SendData() bPass is true if successfull and false otherwise.

Implemented in CPinRPeriph, CPinWPeriph, CMultiRPeriph, CMultiWPeriph, CADCPeriph, CManager, CPeriphFTDI, CMainManager, CChannelFTDI, CChannelMCDAQ, CChannelSerial, CChannelRTV, CManagerFTDI, CManagerMCDAQ, CManagerRTV, and CManagerSerial.

Member Data Documentation

m_csName

const std::tstring CDevice::m_csName

The unique name that identifies this device.

Definition at line 98 of file base classses.h.
